Castor oil production machine

Castor oil production process is very important process in the castor oil milling plant, castor oil press machine ,castor oil extraction machine,castor oil refining machine all are necessary in castor oil processing or you can say castor oil production.

If you want to set up a castor oil production business and need a full plan for the oil press ,oil extraction and refinery. You are in the right place. Henan Doing Company is a famous seeds oil mill machine manufacturer in China, dedicated in cooking oil processing equipment including small oil presses, integrated oil press and filter machine, small scale manufacturing unit and full oil mill plant such as castor oil production machine.

Castor Oil Production, Extraction, Filtration, Purification & Refining Introduction:

Castor oil production procerss machinery

Castor Oil Production Process Introduction

Castor seed is grown commercially on plantations but also harvested from wild plants.The seed must be hulled after harvesting.This can be done laboriously by hand or, more commonly,by machine.Small-scale hand-operated dehullers are available.

The seeds contain about 50 percent oil by weight.To extract the oil they must be crushed and pressed with hydraulic or continuous screw pressing at high or low temperature. High temperature hydraulic pressing yields 80 percent of available oil.Further solvent extraction can release much of the remaining oil.

Modification of the oil is achieved by a variety of chemical processes including oxidation, hydrogenation and thermal treatments to produce products for specific applications.

Castor Oil Production Process:
Extraction of oil from castor seeds is done in a manner similar to that for most other oil seeds.The ripe seeds are allowed to dry, when they split open and discharge the seeds.

The seeds are dehulled after harvesting. Dehulling can be done by hand (laborious) or, more commonly, by machine. Small-scale hand-operated dehullers are also available.The dehulled seeds are cleaned, crushed,flaked ,cooked and dried prior to oil extraction workshop. Cooking is done to coagulate protein (necessary to permit efficient extraction), and for efficient pressing.

The first stage of oil extraction is pre-pressing, normally using a high pressure continuous screw press – called the expeller. Extracted oil is filtered, and the material removed from the oil is fed back into the stream along with fresh material. Material finally discharged from the press, called castor cake, contains 8-10% oil. It is crushed into a coarse meal, and subjected to solvent extraction with heptane to extract further oil.

castor oil production

Castor oil extraction machine workshop

Castor Oil Filtration & Purification Process:

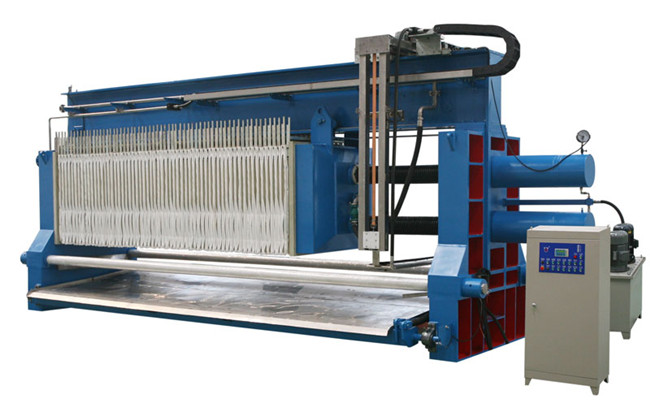

Once the oil has been extracted from the seed, it is necessary to remove impurities present in the oil. The filtration systems are designed to remove particulates, water, dissolved gases, and acids. The castor oil production machine that is normally used for filtration is a filter press.

castor oil production machine

Castor oil filtration machine can remove particulates, water, dissolved gases, and acids

Castor Oil Refining Process:

The filtered oil (called the crude or unrefined oil) is sent to the oil refinery. The steps to refine the crude oil include:

castor oil production machine

Small scale castor oil refining machine

Degumming process of crude castor oil:Done to remove the aqueous phase from the lipids, and to remove phospholipids from the oil.
Neutralization process of crude castor oil:The neutralization step is necessary for castor oil production machine to remove free fatty acids from the oil.
Bleaching process of crude castor oil:Bleaching results in the removal of coloring materials, phospholipids and oxidation products.
Deodorization process of crude castor oil:Deodorization results in the removal of odour from the oil.

Our company, Henan Doing Company devotes to provide solutions for castor oil production and castor oil refining, including castor oil production layout design, castor oil production machine manufacturing, castor oil production machine debugging and installation. At Henan Doing Company, you can find the BEST castor oil production process machinery.
